Image Processing As an exclusive distributor of Sichuan Qijin Co., Ltd. (SQC, China) for Japan and EU market, NeoCentury Systems proudly introduce our products in image processing area, covering virtually every commercially available image processing technologies. SQC has strong technical backup and exclusive partnership with Image Information Institute of Sichuan University, which is hub of advanced science and technology in China, and ever evolving image processing technologies. Our products originally stem from researches in image processing technologies for Chinese national oil refineries, in areas of earth core image scanning, petroleum geologic microscopic image analyzing, etc... Since then our image analysis system has been extended to a wide range of applicability, such as oil fields (e.g. Daqing, Shengli, Huabei, Keramay and so on), machinery and metallurgic factories (e.g. Deyang 2nd. Heavy Duty Machinery Group, Sichuan Changcheng Special Steel Corporation, Shanghai BaoSteel Corporation), China Academy of Geological Sciences, The Academy of Military Medical Sciences, The Institute of High Energy Physics of Chinese Academy of Sciences, Air Force Aviation Medical Research Institute and so on. Our system brings good social and economical benefits, improves the research ability, analysis ability, product quality, and enjoys a good reputation. Our excellent researches and engineering are backup up by Professors, Doctors, and senior researchers at Sichuan Univ., who are mostly engaged in dealing with image and mode discriminating research in scientific research aspect. Of more than 30 commercially available image processing applications available with support from high level specialty engineers and researchers from academic institute, our LPR and intelligent traffic system has been operating at more than 300 sites in China. To name a few areas of our image processing applications; CISS Core Image Scanning System CIAS Petroleum Geologic Microscopic Image Analyzing 3D Reconstruction & Quantitative Analysis System 3D Pores and Particles Reconstruction Color Image Analyzing System of Grains & Pores of Thin Section Fluorescence Image Analyzing System of Thin Slice Image Analysis System of Microscopic Oil Displacement Well-logging Curve Vectorization S/W Related Programs of Petroleum-Geology Chromatic and Monochrome Metallography(Material) Auto-analyzing System Synthetic Aperture Radar (SAR) Imaging Recognition Simulation Biomedical Image Analysis System Biomedical 3D Image Analysis System 3D Raster Projection Imaging The Research of Computational Optical Sectioning Microscopy Industrial Pipeline Detect and Control System Fingerprint Recognition System H.264 Standard Video Communication Remote Monitor and Control Digital System High Speed Image Sample and Store Process System CIAS2003 Vehicle LPR System CIAS Intelligent LPR System Intelligent Transportation System Etc...

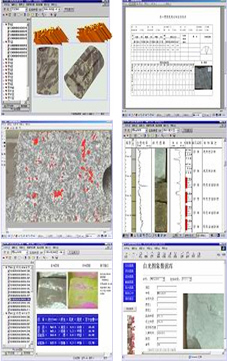

CISS Core Image Scanning System Using automatic control, image processing, computer technology, mathematic statistical methods and knowledge of other disciplines, the surface image of core under white light and fluorescence is scanned by high-resolution imaging equipment and transmitted to the computer and saved to database to retain the original core characterizarion eternally. The core can be rotated and the imaging equipment can make translation move to acquire image of full surface of core, which is automatically analyzed to study the bedding, grains, fractures, pores and class of florescence. Scientists and researchers can visit the database of the images and text locally or access it remotely over the internet.

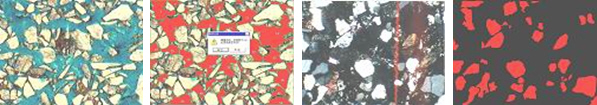

CIAS Petroleum Geologic Microscopic Image Analyzing CIAS color image analyzing system is a digital apparatus developed by the Image Information Institute, which reaches international leading level. At present, more than 30 sets had been used in the oil fields in China.

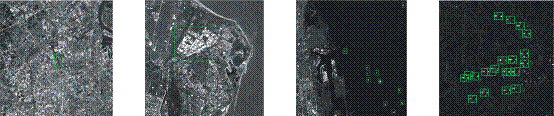

SAR (Synthetic Aperture Radar) Imaging Recognition Simulation Synthetic aperture radar is the eyes of upper air. It is mostly used for spying, searching, detecting, examining, recognition, scouting, safeguarding, attacking ground objects such as military installations, army transfer, airdrome, dock, traffic, supply, aeroplane, ships, chariot, tank, oil depot, reservoir, dam, bridge, tide, flood, earthquake, debris flow, volcano, forest fire and so on in national defense, military affairs, remote sensing. Synthetic aperture radar has two types: Spaceborne SAR and Airborne SAR.

Biomedical Image Analysis System The Biomedicine Image Analysis System which is exploited by Image Information Institute of Sichuan University has a wide application area. It is mainly divided into 3 parts. Medical treatment diagnosis: Blood cell classifying and counting automatically, chromosome analysis, optical density analysis, cancer cell identification and so on. Biomedicine research: In the biomedicine research field, a lot of researches need computer image analysis system to obtain and deal with images fast and exactly, and make quantitative calculation and analysis for images. So it is a necessary tool in medical research. New medicine development: The new medicine must be well evaluated and analyzed for its drug effect and toxicity before clinic using. It's a way of evaluation to research the change of biology shape and structure after having the medicine. It can detect the change of tissue and cell after the medicine's interposition, observe the direct effect to organism and get normative and exact data. So it is more exact, quicker and cheaper than other animal experiments before.

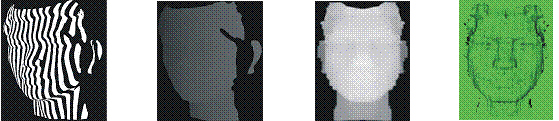

3D Raster Projection Imaging Three-dimensional raster projection imaging (3D RPI) is a surface imaging of 3D objects. It is mainly used in the fields of national defense, military, industry, mechanical process, physical, biomedicine, art, cultural relic managing. It is also used for the dimension measuring, identifying, emulation, copying, rebuilding, figure store, recourse sharing of 3D objects.

Remote Monitor and Control Digital System Remote digital monitor and control system with high stability and reliability developed by the Image Information Institute of Sichuan University takes on the advantages of high spot fidelity and easy to operate. It has passed National Safe Defense Products Certification. This functional monitor and control system can realize the video and audio real time data acquisition, previewing, monitoring and playing back, adjust code rate and frame rate according with the scene change and utilize the memory space efficiently. Besides, it can process accurate dynamic object sense videotaping, sensor alarm videotaping and diversified intelligent videotaping. Furthermore, it can realize as many as 16 channels monitoring. The monitoring system can connect a variety of alarm systems, actualize diversified turning platform control and can realize remote control by LANs or telephone line. System is widely used in public such as bank, hotel, marketplace, traffic and coast defense monitoring and control.

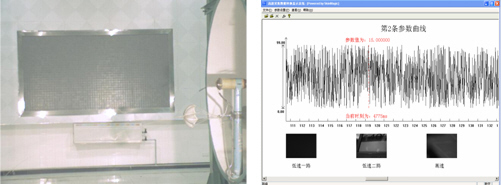

High Speed Image Sample and Store Processing System High speed image sample and store processing system is implemented by Sichuan University. It utilizes high speed camera equipment to sample high speed dynamic images into computer for storing and processing. It also does correlation analysis and measurement, for example: judging the dynamic image's mobility parameters, such as velocity, acceleration, angular spin rate, attack angle and so on, and provide analysis data, diagrams and report forms. It can be widely applied in National Defense, traffic, industry, agriculture biology, gym and so on.

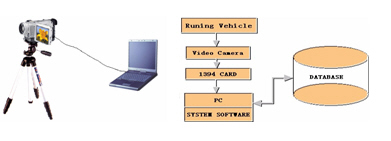

CIAS2003 Vehicle LPR System Cias2003 Vehicle License Plate Recognize (LPR) System has the capability of capturing and recording vehicle license plates. It can be used in Traffic Monitoring, Law Enforcement and Automated Site Security, etc... CIAS2003 Vehicle LPR System is composed of 3 parts;

Camera: Video Camera and Bracket Image Collection Card NotePC or Industrial PC
